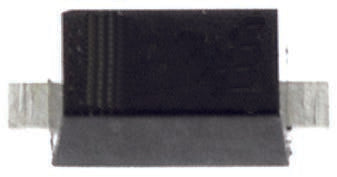

Diodes Inc, 4V Zener Diode 3.5% 500 mW SMT 2-Pin SOD-323F [DDZ3V9BSF-7]; 169-0770
by DiodesZetex
0₫
Mã kho: 1690770
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 4V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-323F |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.035 |
| Pin Count | 2 |
| Test Current | 20mA |
| Maximum Zener Impedance | 130Ω |
| Maximum Reverse Leakage Current | 10µA |
| Length | 1.8mm |
| Width | 1.35mm |
| Dimensions | 1.8 x 1.35 x 0.75mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.75mm |
| Minimum Operating Temperature | -65 °C |
