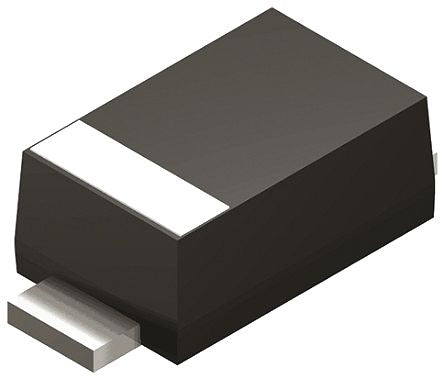

Diodes Inc, 17.9V Zener Diode 2.5% 500 mW SMT 2-Pin SOD-123 [DDZ18C-7]; 146-0564
by DiodesZetex
0₫
Mã kho: 1460564
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 17.9V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-123 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 0.025 |
| Pin Count | 2 |
| Test Current | 10mA |
| Maximum Zener Impedance | 23Ω |
| Maximum Reverse Leakage Current | 50nA |
| Length | 2.85mm |
| Width | 1.7mm |
| Dimensions | 2.85 x 1.7 x 1.35mm |
| Minimum Operating Temperature | -65 °C |
| Height | 1.35mm |
| Maximum Operating Temperature | +150 °C |
