![DiodesZetex BZX84C12W-7-F 8229013](http://nguyenxuong.com/cdn/shop/products/R8229013-01_444x410.jpg?v=1594195977)

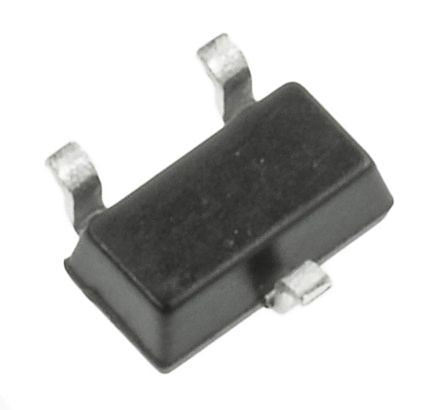

Diodes Inc, 12V Zener Diode 5% 200 mW SMT 3-Pin SOT-323 [BZX84C12W-7-F]; 822-9013
by DiodesZetex
0₫
Mã kho: 8229013
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 12V |
Diode Configuration | Single |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Maximum Power Dissipation | 200 mW |
Package Type | SOT-323 (SC-70) |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.05 |
Pin Count | 3 |
Test Current | 5mA |
Maximum Zener Impedance | 25Ω |
Maximum Reverse Leakage Current | 100nA |
Length | 2.2mm |
Width | 1.35mm |
Dimensions | 2.2 x 1.35 x 1mm |
Typical Voltage Temperature Coefficient | 6 → 10mV/°C |
Maximum Operating Temperature | +125 °C |
Height | 1mm |
Minimum Operating Temperature | -65 °C |
