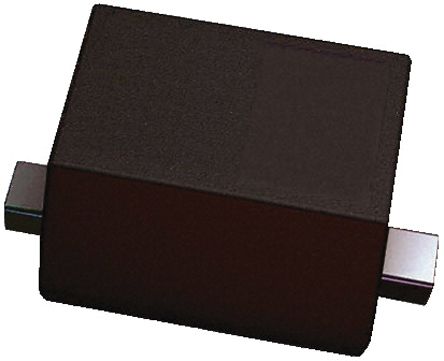

Diodes Inc, 8.2V Zener Diode ±2% 350 mW SMT 2-Pin SOD-523 [BZT585B8V2T-7]; 170-9034
by DiodesZetex
0₫
Mã kho: 1709034
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 8.2V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 350 mW |
| Package Type | SOD-523 |
| Zener Type | Precision |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 80Ω |
| Maximum Reverse Leakage Current | 700nA |
| Length | 1.3mm |
| Width | 0.9mm |
| Dimensions | 1.3 x 0.9 x 0.65mm |
| Height | 0.65mm |
| Forward Voltage | 1.1V |
| Typical Voltage Temperature Coefficient | 4.7mV/°C |
| Maximum Operating Temperature | +150 °C |
| Power Dissipation | 350mW |
| Minimum Operating Temperature | -65 °C |
| Forward Current | 200mA |
