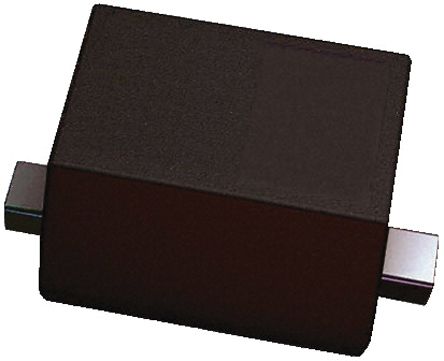

![DiodesZetex BZT585B7V5T-7 9210944](http://nguyenxuong.com/cdn/shop/products/R9210944-01_444x361.jpg?v=1594235084)
Diodes Inc, 7.5V Zener Diode ±2% 350 mW SMT 2-Pin SOD-523 [BZT585B7V5T-7]; 921-0944
by DiodesZetex
0₫
Mã kho: 9210944
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 7.5V |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Maximum Power Dissipation | 350 mW |
Package Type | SOD-523 |
Zener Type | Precision |
Zener Voltage Tolerance | ±2% |
Pin Count | 2 |
Test Current | 5mA |
Maximum Zener Impedance | 80Ω |
Maximum Reverse Leakage Current | 1µA |
Length | 1.3mm |
Width | 0.9mm |
Dimensions | 1.3 x 0.9 x 0.65mm |
Maximum Operating Temperature | +150 °C |
Height | 0.65mm |
Power Dissipation | 350mW |
Minimum Operating Temperature | -65 °C |
Forward Current | 200mA |
Forward Voltage | 1.1V |
Typical Voltage Temperature Coefficient | 3.8mV/°C |
