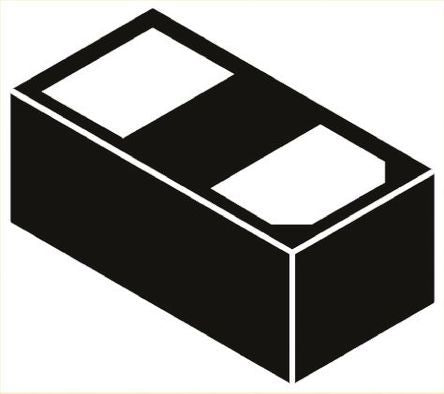

Diodes Inc, 5.1V Zener Diode 6% 250 mW SMT 2-Pin DFN-1006 [BZT52C5V1LP-7]; 885-5448
by DiodesZetex
0₫
Mã kho: 8855448
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 5.1V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 250 mW |
| Package Type | DFN-1006 |
| Zener Type | Ultra Small |
| Zener Voltage Tolerance | 0.06 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 480Ω |
| Maximum Reverse Leakage Current | 2µA |
| Length | 1.07mm |
| Width | 0.67mm |
| Dimensions | 1.07 x 0.67 x 0.48mm |
| Typical Voltage Temperature Coefficient | -2.7 → 1.2mV/°C |
| Minimum Operating Temperature | -65 °C |
| Forward Voltage | 0.9V |
| Forward Current | 10mA |
| Height | 0.48mm |
| Maximum Operating Temperature | +150 °C |
| Power Dissipation | 250mW |
