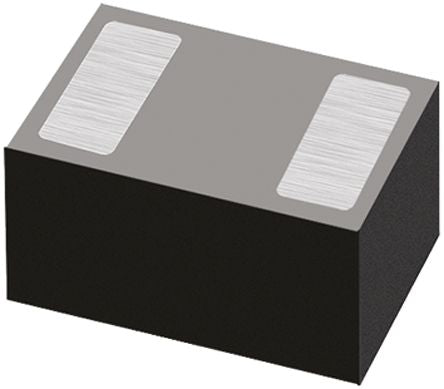

Diodes Inc, 3.6V Zener Diode 6% 250 mW SMT 2-Pin X1-DFN1006 [BZT52C3V6LP-7]; 822-2255
by DiodesZetex
0₫
Mã kho: 8222255
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 3.6V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 250 mW |
| Package Type | X1-DFN1006 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 0.06 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 90Ω |
| Maximum Reverse Leakage Current | 5µA |
| Length | 1.08mm |
| Width | 0.675mm |
| Dimensions | 1.075 x 0.675 x 0.47mm |
| Typical Voltage Temperature Coefficient | -3.5 → 0mV/°C |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 0.47mm |
