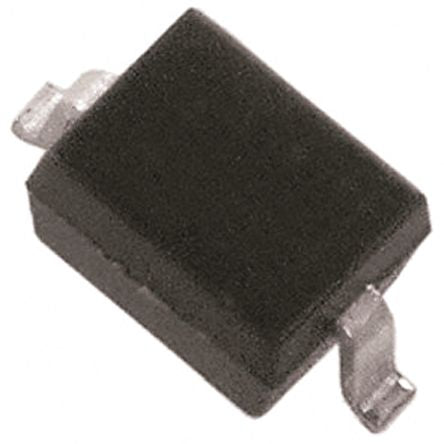

Diodes Inc, 27V Zener Diode 7% 200 mW SMT 2-Pin SOD-323 [BZT52C27S-7-F]; 179-1111
by DiodesZetex
0₫
Mã kho: 1791111
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Nominal Zener Voltage | 27V |
Diode Configuration | Single |
Number of Elements per Chip | 1 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 200 mW |
Package Type | SOD-323 |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.07 |
Pin Count | 2 |
Test Current | 2mA |
Maximum Zener Impedance | 80Ω |
Maximum Reverse Leakage Current | 100nA |
Length | 1.8mm |
Width | 1.4mm |
Dimensions | 1.8 x 1.4 x 1.1mm |
Height | 1.1mm |
Maximum Operating Temperature | +150 °C |
Typical Voltage Temperature Coefficient | 21.4 (Min)mV/°C |
Minimum Operating Temperature | -65 °C |
