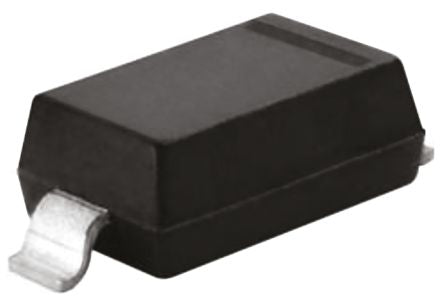

Diodes Inc, 15V Zener Diode 6% 500 mW SMT 2-Pin SOD-123 [BZT52C15-7-F]; 121-9477
by DiodesZetex
0₫
Mã kho: 1219477
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 15V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 500 mW |
| Package Type | SOD-123 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 0.06 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 200Ω |
| Maximum Reverse Leakage Current | 100nA |
| Length | 2.85mm |
| Width | 1.7mm |
| Dimensions | 2.85 x 1.7 x 1.35mm |
| Typical Voltage Temperature Coefficient | 11.1mV/°C |
| Height | 1.35mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
