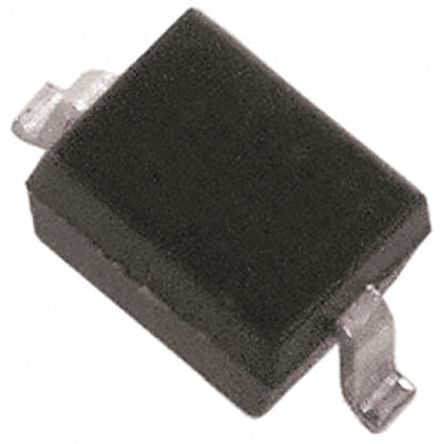

Diodes Inc, 13V Zener Diode 7% 200 mW SMT 2-Pin SOD-323 [BZT52C13S-7-F]; 822-2198
by DiodesZetex
0₫
Mã kho: 8222198
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 13V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Package Type | SOD-323 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 0.07 |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 30Ω |
| Maximum Reverse Leakage Current | 100nA |
| Length | 1.8mm |
| Width | 1.4mm |
| Dimensions | 1.8 x 1.4 x 1.1mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.1mm |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 7 → 11mV/°C |
