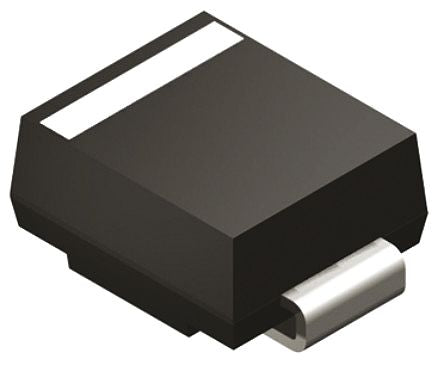

Diodes Inc, 6.8V Zener Diode 5% 3 W SMT 2-Pin SMB [1SMB5921B-13]; 822-2056
by DiodesZetex
0₫
Mã kho: 8222056
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Diode Configuration | Single |
Nominal Zener Voltage | 6.8V |
Mounting Type | Surface Mount |
Number of Elements per Chip | 1 |
Maximum Power Dissipation | 3 W |
Package Type | SMB |
Zener Type | General Purpose |
Zener Voltage Tolerance | 0.05 |
Pin Count | 2 |
Test Current | 55.1mA |
Maximum Zener Impedance | 2.5Ω |
Maximum Reverse Leakage Current | 5µA |
Length | 4.57mm |
Width | 3.94mm |
Dimensions | 4.57 x 3.94 x 2.3mm |
Height | 2.3mm |
Minimum Operating Temperature | -65 °C |
Maximum Operating Temperature | +150 °C |
