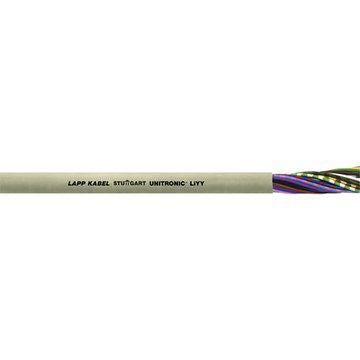

Lapp Lapp UNITRONIC LiYY 7 Core YY Control Cable, 0.34 mm², 100m, Unscreened [0028407]; 491-8848
by Lapp
0₫
Mã kho: 4918848
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 7 |
| Cross Sectional Area | 0.34 mm² |
| Series | UNITRONIC LiYY |
| Screened/Unscreened | Unscreened |
| Earth Cable | No |
| Sheath Colour | Grey |
| Outer Diameter | 5.9mm |
| Current Rating | 0.25 |
| Voltage Rating | 500 V |
| American Wire Gauge | 22 AWG |
| Conductor Material | Copper |
| Core Strands | 7/0.25 mm |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D |
| Oil Resistant | Yes |
| Length | 100m |
| Filler Material | Non-Wicking Filler |
| Insulation Material | PVC |
| Conductor Resistance | 57 Ω/km |
| Sheath Material | Polyvinyl Chloride PVC |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
