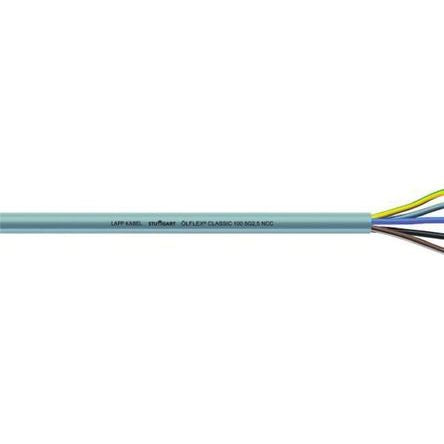

Lapp Lapp Olflex Classic 100 300/500V 3 Core YY Control Cable, 2.5 mm², 50m, Unscreened [0010087]; 727-1436
by Lapp
0₫
Mã kho: 7271436
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 2.5 mm² |
| Series | ÖLFLEX CLASSIC 100 |
| Screened/Unscreened | Unscreened |
| Earth Cable | Yes |
| Sheath Colour | Grey |
| Outer Diameter | 9.6mm |
| Current Rating | 26 A |
| Voltage Rating | 450/750 V |
| American Wire Gauge | 13 AWG |
| Conductor Material | Copper |
| Core Strands | 50/0.25 mm |
| Oil Resistant | Yes |
| Length | 50m |
| Minimum Operating Temperature | -5°C |
| Insulation Material | PVC |
| Conductor Resistance | 7.98 Ω/km |
| Sheath Material | Polyvinyl Chloride PVC |
| Maximum Operating Temperature | +70°C |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 15 x D |
| Filler Material | Non-Wicking Filler |
