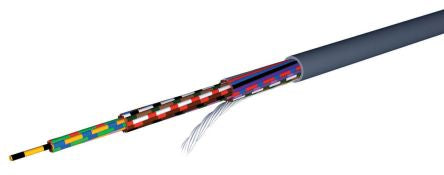

CAE Groupe HIFLEX-Y 7 Core YY Control Cable, 0.5 mm², 50m, Unscreened [90700050C50]; 529-693
by CAE Groupe
0₫
Mã kho: 529693
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 7 |
| Cross Sectional Area | 0.5 mm² |
| Series | HIFLEX-Y |
| Screened/Unscreened | Unscreened |
| Earth Cable | No |
| Sheath Colour | Grey |
| Outer Diameter | 6.3mm |
| Current Rating | 0.375 |
| Voltage Rating | 300 V |
| American Wire Gauge | 20 AWG |
| Conductor Material | Bare Annealed Copper |
| Minimum Bend Radius | 7 x Diameter |
| Oil Resistant | Yes |
| Maximum Operating Temperature | +70°C |
| Standards Met | Euroclass Eca |
| Filler Material | PVC |
| Minimum Operating Temperature | -30°C |
| Insulation Material | PVC |
| Conductor Resistance | 39.6 Ω/km |
| Length | 50m |
| Sheath Material | Polyvinyl Chloride PVC |
