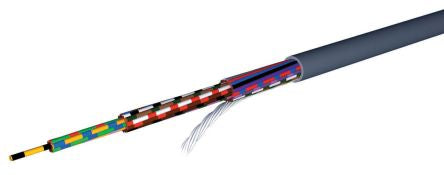

CAE Groupe HIFLEX-Y 5 Core YY Control Cable, 0.34 mm², 50m, Unscreened [90500034C50]; 529-986
by CAE Groupe
0₫
Mã kho: 529986
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 5 |
Cross Sectional Area | 0.34 mm² |
Series | HIFLEX-Y |
Screened/Unscreened | Unscreened |
Earth Cable | No |
Sheath Colour | Grey |
Outer Diameter | 4.9mm |
Current Rating | 0.25 |
Voltage Rating | 300 V |
American Wire Gauge | 22 AWG |
Cable Shape | Multicore |
Conductor Material | Copper |
Fire Behaviour | Flame Retardant |
Minimum Operating Temperature | -30°C |
Filler Material | PVC |
Insulation Material | PVC |
Conductor Resistance | 58.9 Ω/km |
Minimum Bend Radius | 7 x Diameter |
Maximum Operating Temperature | +70°C |
Sheath Material | Polyvinyl Chloride PVC |
Standards Met | Euroclass Eca |
Oil Resistant | Yes |
Length | 50m |
