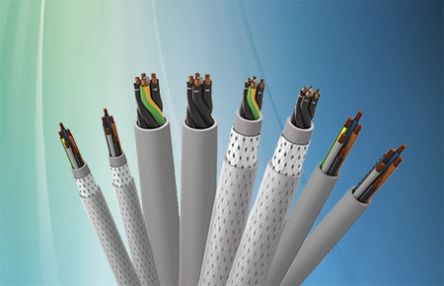

Belden MachFlex350 7 Core YY Control Cable, 0.75 mm², 50m, Unscreened [7GB-BC50]; 176-2351
by Belden
0₫
Mã kho: 1762351
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 7 |
Cross Sectional Area | 0.75 mm² |
Series | MachFlex |
Screened/Unscreened | Unscreened |
Earth Cable | Yes |
Sheath Colour | Grey |
Outer Diameter | 7.2mm |
Voltage Rating | 300 V, 500 V |
Cable Shape | Multicore |
Conductor Material | Copper |
Insulation Material | PVC |
Sheath Material | Polyvinyl Chloride PVC |
Fire Behaviour | Flame Retardant |
Minimum Bend Radius | 4 x 7.2 (Fixed), 10 x 7.2 (Occasional) |
Minimum Operating Temperature | -30°C |
Oil Resistant | Yes |
Maximum Operating Temperature | +80°C |
Length | 50m |
