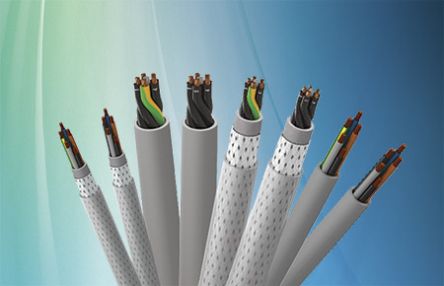

Belden MachFlex350 4 Core YY Control Cable, 1 mm², 50m, Unscreened [4GC-BC50]; 176-2330
by Belden
0₫
Mã kho: 1762330
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 1 mm² |
| Series | MachFlex |
| Screened/Unscreened | Unscreened |
| Earth Cable | Yes |
| Sheath Colour | Grey |
| Outer Diameter | 6.4mm |
| Voltage Rating | 300 V, 500 V |
| Cable Shape | Multicore |
| Conductor Material | Copper |
| Oil Resistant | Yes |
| Maximum Operating Temperature | +80°C |
| Length | 50m |
| Minimum Operating Temperature | -30°C |
| Insulation Material | PVC |
| Minimum Bend Radius | 4 x 6.4 (Fixed), 10 x 6.4 (Occasional) |
| Fire Behaviour | Flame Retardant |
| Sheath Material | Polyvinyl Chloride PVC |
