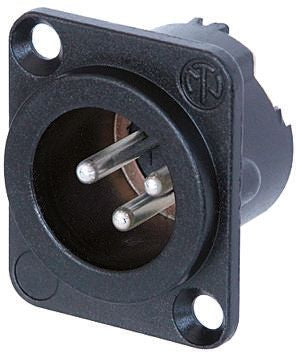

Neutrik 3 Way Chassis Mount XLR Connector, Male, Silver over Nickel Plated Contacts, 50 V [NC3MD-LX-HA-BAG]; 694-9425
by Neutrik
0₫
Mã kho: 6949425
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 3 |
| Gender | Male |
| Mounting Type | Chassis Mount |
| Body Orientation | Straight |
| Contact Plating | Silver over Nickel |
| Housing Material | Nylon |
| Termination Method | Crimp |
| Current Rating | 1A |
| Voltage Rating | 50 V |
| Contact Material | Brass |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +80°C |
