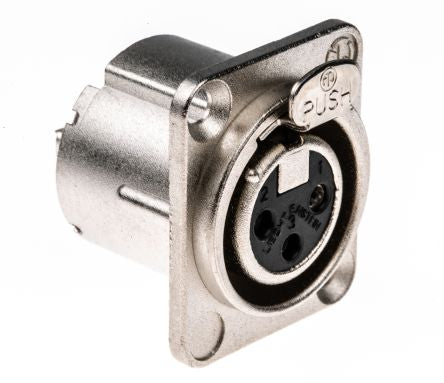

Neutrik 3 Way Panel Mount XLR Connector, Female, Silver over Nickel Plated Contacts, 50 V [NC3FD-LX]; 166-462
by Neutrik
0₫
Mã kho: 166462
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 3 |
Gender | Female |
Mounting Type | Panel Mount |
Body Orientation | Straight |
Contact Plating | Silver over Nickel |
Housing Material | Nylon |
Termination Method | Solder |
Current Rating | 16A |
Voltage Rating | 50 V |
Contact Material | Bronze |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
