Panduit Type TNC slotted wall wiring duct, 24.6mm W x 35.8mm H, 6.6' length, polyphenylene ether + high impact polystyrene (PPE + HIPS), light gray, base and cover packaged together. [TNC25X37LG2]; PAP440

Name: Panduit Type TNC slotted wall wiring duct, 24.6mm W x 35.8mm H, 6.6' length, polyphenylene ether + high impact polystyrene (PPE + HIPS), light gray, base and cover packaged together. [TNC25X37LG2]; PAP440
Brand: Panduit
SKU: PAP440
Price: 918100.0 VND
Availability: InStock

by Panduit

918.100₫

(Giá chưa VAT).

Mã kho: PAP440

Mã nhà sản xuất: TNC25X37LG2

Đơn vị tính: RL

Quy cách đóng gói: 20

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit TNC25X37LG2

MÔ TẢ SẢN PHẨM

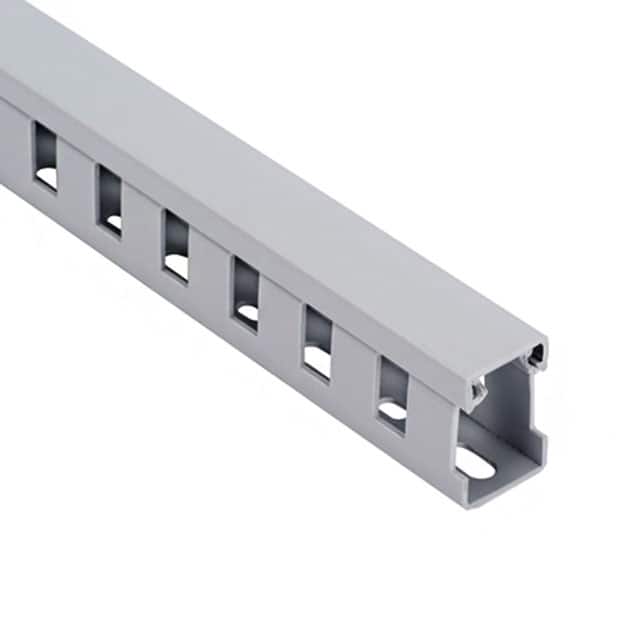

Type TNC slotted wall wiring duct, 24.6mm W x 35.8mm H, 6.6' length, polyphenylene ether + high impact polystyrene (PPE + HIPS), light gray, base and cover packaged together.

_THÔNG SỐ KỸ THUẬT:

Application	(1) Type TNC Wiring Duct Routes, Protects, and Manages Electrical and Communication Cabling in Control Panels and Wire Routing Applications that Require Enhanced Material Performance for Fire Safety such as in Light Rail and Transit Systems, Commuter Buses, Data Centers, Offshore Oil and Gas Platforms, and other Environments
Product Type	Base and Cover
Color	Light Gray
Cover Part Number	TNC75LG2 (included)
Flammability Rating	UL94 V-0
Includes	Cover
Standards Met	RoHS Compliant, UL Recognized
Material	Low Smoke, Halogen Free (PPE + HIPS)
Mount Method	DIN Mounting Holes
Measurement System	Metric
Wiring Duct Style	Wide Slot Wiring Duct
Wiring Duct Type	TNC
Overall Height (In.)	1.47
Overall Length (ft.)	6.6
Overall Length (m)	2
Overall Width (In.)	0.97
Overall Width (mm)	24.6
Slot Width (In.)	0.39
Slot Width (mm)	9.9
Sub Brand	Panduct®
Part Features	Metric Low-Smoke/Halogen-Free Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. The halogen-free material is environmentally safe and will not release corrosive or toxic gases. Base and Cover Packaged together.
