Panduit Panduct® type MC metric narrow slot wiring duct, 50mm W x 100mm H x 2M length, PVC, international gray. [MC50X100IG2]; PAN221

Name: Panduit Panduct® type MC metric narrow slot wiring duct, 50mm W x 100mm H x 2M length, PVC, international gray. [MC50X100IG2]; PAN221
Brand: Panduit
SKU: PAN221
Price: 825400.0 VND
Availability: InStock

by Panduit

825.400₫

(Giá chưa VAT).

Mã kho: PAN221

Mã nhà sản xuất: MC50X100IG2

Đơn vị tính: PC

Quy cách đóng gói: 10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit MC50X100IG2

MÔ TẢ SẢN PHẨM

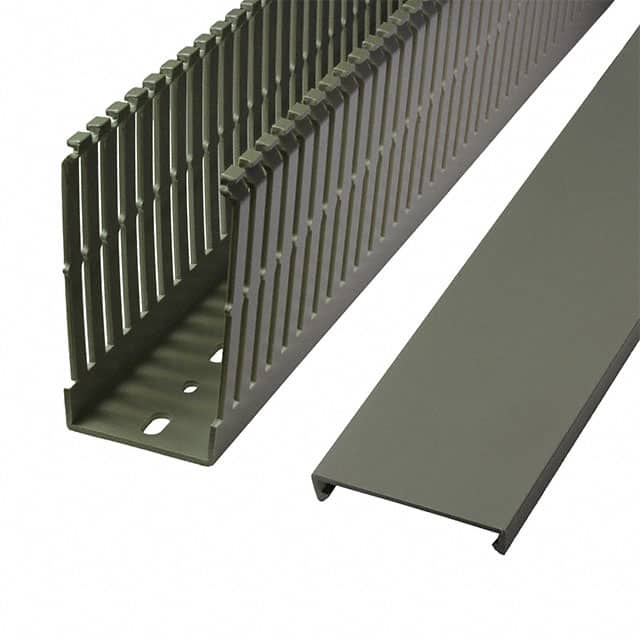

The MC50X100IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temp

_THÔNG SỐ KỸ THUẬT:

Application	Narrow slot/finger design intended to provide more slots for high-density European applications
Product Type	Base and Cover
Color	International Gray
Cover Part Number	C50IG2 (included)
Flammability Rating	UL94V-0
Includes	Base and Cover
Standards Met	RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
Material	Lead-Free PVC
Mount Method	DIN Mounting Holes
Measurement System	Metric
Wiring Duct Style	Metric Narrow Slot Wiring Duct
Wiring Duct Type	MC
Overall Height (In.)	3.85
Overall Height (mm)	97.8
Overall Length (ft.)	6.6
Overall Length (m)	2
Overall Width (In.)	1.95
Overall Width (mm)	49.5
Slot Width (In.)	0.2
Slot Width (mm)	5
Sub Brand	Panduct®
BMEcat - Flexibility	0
BMEcat - Material only	Plastic
BMEcat - Mounting Method	Bottom perforation
BMEcat - With Cover	1
CE Compliant	Yes
CE Marking	Yes
CSA Certified	Yes
Diameter (In.)	14
Diameter (mm)	356
Duct Size W x H (In.)	1.95 x 3.85
Duct Size W x H (mm)	49.5 x 97.8
ETIM Number	EC000012
Environment	Indoor
Length (ft.)	6.6
Length (m)	2
Nominal Duct Size WXH inches (mm)	50 x 100
Overall Length (In.)	78.74
Part Features	Metric PVC narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Base and Cover Packaged together.
Surface Treatment	Untreated
Type	Base and Cover
UL Recognized (File No. E147128)	Yes
UL recognized continuous use temp	122°F (50°C)
UNSPSC	39131712
