Panduit Panduct® type MC metric narrow slot wiring duct, 37mm W x 75mm H x 2M length, PVC, white. [MC37X75WH2]; PAN220

Name: Panduit Panduct® type MC metric narrow slot wiring duct, 37mm W x 75mm H x 2M length, PVC, white. [MC37X75WH2]; PAN220
Brand: Panduit
SKU: PAN220
Price: 675100.0 VND
Availability: InStock

by Panduit

675.100₫

(Giá chưa VAT).

Mã kho: PAN220

Mã nhà sản xuất: MC37X75WH2

Đơn vị tính: PC

Quy cách đóng gói: 20

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit MC37X75WH2

MÔ TẢ SẢN PHẨM

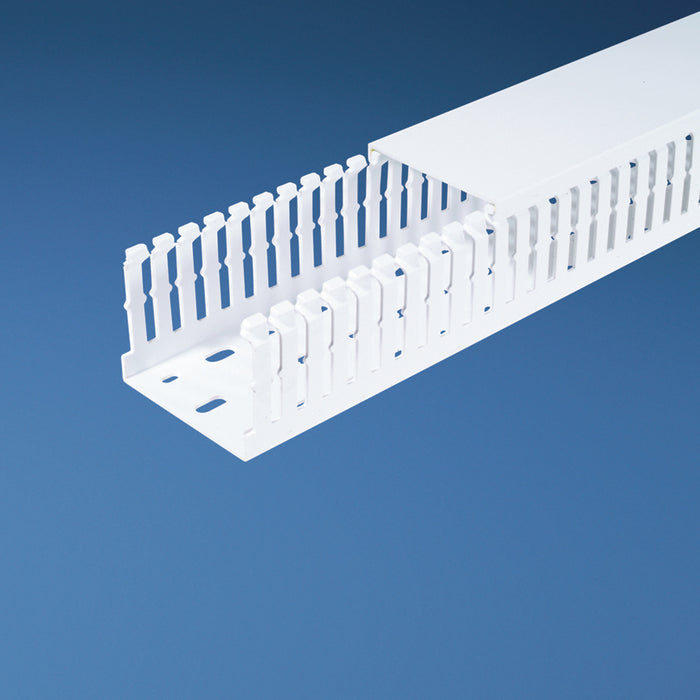

Panduct® type MC metric narrow slot wiring duct, 37mm W x 75mm H x 2M length, PVC, white.

_THÔNG SỐ KỸ THUẬT:

Product Type	Base and Cover
Color	White
Cover Part Number	C37WH2 (included)
Flammability Rating	UL94 V-0
Includes	Base and Cover
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	DIN Mounting Holes
Measurement System	Metric
Wiring Duct Style	Metric Narrow Slot Wiring Duct
Wiring Duct Type	MC
Overall Height (In.)	2.85
Overall Height (mm)	72.4
Overall Length (ft.)	6.6
Overall Length (m)	2
Overall Width (In.)	1.46
Overall Width (mm)	37.1
Slot Width (In.)	0.2
Slot Width (mm)	5
Sub Brand	Panduct®
Length (m)	2
Part Features	Metric PVC narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Base and Cover Packaged together.
