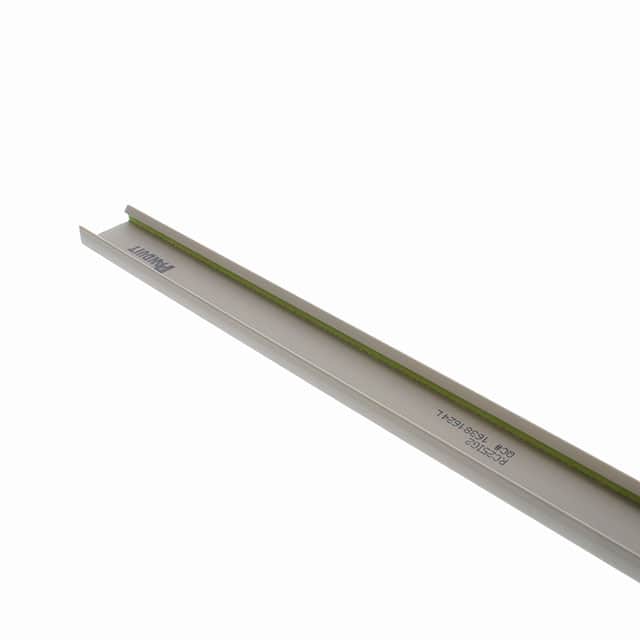

Panduit Panduct® type MC metric narrow slot wiring duct, 25mm W x 50mm H x 2M length, PVC, international gray. [MC25X50IG2]; PAN207

Name: Panduit Panduct® type MC metric narrow slot wiring duct, 25mm W x 50mm H x 2M length, PVC, international gray. [MC25X50IG2]; PAN207
Brand: Panduit
SKU: PAN207
Price: 493800.0 VND
Availability: InStock

by Panduit

493.800₫

(Giá chưa VAT).

Mã kho: PAN207

Mã nhà sản xuất: MC25X50IG2

Đơn vị tính: PC

Quy cách đóng gói: 20

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Wiring Duct Accessories / Wiring Duct Duct Covers: Panduit MC25X50IG2

MÔ TẢ SẢN PHẨM

Panduct® type MC metric narrow slot wiring duct, 25mm W x 50mm H x 2M length, PVC, international gray.

_THÔNG SỐ KỸ THUẬT:

Product Type	Base and Cover
Color	International Gray
Cover Part Number	C25IG2 (included)
Flammability Rating	UL94 V-0
Includes	Base and Cover
Standards Met	RoHS Compliant, UL Recognized, CE Compliant
Material	Lead-Free PVC
Mount Method	DIN Mounting Holes
Measurement System	Metric
Wiring Duct Style	Metric Narrow Slot Wiring Duct
Wiring Duct Type	MC
Overall Height (In.)	1.88
Overall Height (mm)	47.8
Overall Length (ft.)	6.6
Overall Length (m)	2
Overall Width (In.)	0.97
Overall Width (mm)	24.6
Slot Width (In.)	0.2
Slot Width (mm)	5
Sub Brand	Panduct®
Length (m)	2
Part Features	Metric PVC narrow finger and slot design closely matches the spacing of high-density compnents. Upper and lower scorelines allows easy finger and sidewall section removals. Base and Cover Packaged together.
