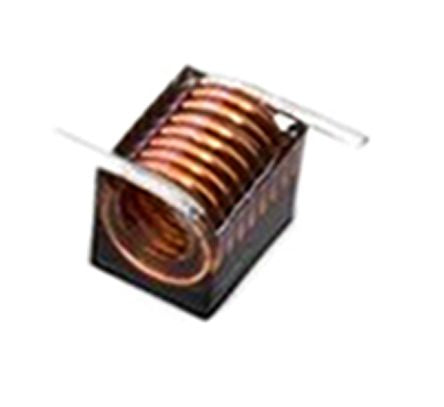

Wurth WE-CAIR Series Type 3168 Wire-wound SMD Inductor 35.5 nH Wire-Wound 4A Idc Q:112 [744914135]; 163-8196
0₫
Mã kho: 1638196
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 35.5 nH |
| Maximum DC Current | 4A |
| Package/Case | 3168 |
| Length | 6.86mm |
| Depth | 3.05mm |
| Height | 3.18mm |
| Dimensions | 6.86 x 3.05 x 3.18mm |
| Maximum DC Resistance | 6.8mΩ |
| Series | WE-CAIR |
| Maximum Self Resonant Frequency | Minimum of 1.5GHz |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 112 |
| Inductor Construction | Wire-Wound |
