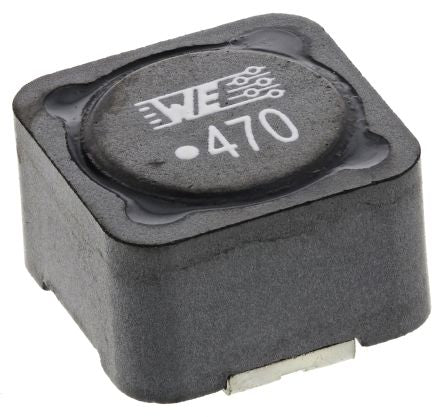

Wurth WE-PD Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% 2.7A Idc [744770147]; 163-3329
0₫
Mã kho: 1633329
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 47 μH |
| Maximum DC Current | 2.7A |
| Length | 12mm |
| Depth | 12mm |
| Height | 8mm |
| Dimensions | 12 x 12 x 8mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 100mΩ |
| Series | WE-PD |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 7.9MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
