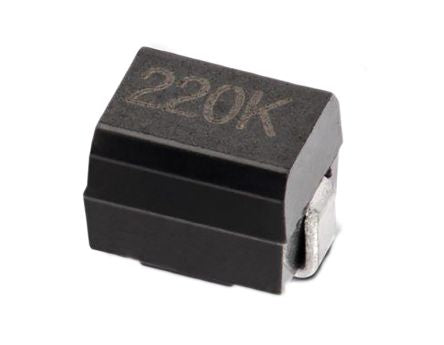

Wurth WE-GFH Series Type 4532 Wire-wound SMD Inductor with a Iron Core, 220 μH Moulded 200mA Idc Q:40 [7447669220]; 163-8011
0₫
Mã kho: 1638011
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 220 μH |
| Maximum DC Current | 200mA |
| Package/Case | 4532 |
| Length | 4.2mm |
| Depth | 3.2mm |
| Height | 3.2mm |
| Dimensions | 4.2 x 3.2 x 3.2mm |
| Maximum DC Resistance | 7.2Ω |
| Series | WE-GFH |
| Core Material | Iron |
| Maximum Self Resonant Frequency | 6.5MHz |
| Moulded | Yes |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Moulded |
| Minimum Quality Factor | 40 |
| Maximum Operating Temperature | +125°C |
