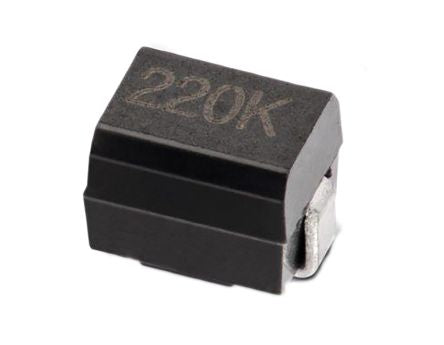

Wurth WE-GFH Series Type 4532 Wire-wound SMD Inductor with a Iron Core, 4.7 μH Moulded 1.2A Idc Q:30 [744766904]; 163-7995
0₫
Mã kho: 1637995
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 4.7 μH |
| Maximum DC Current | 1.2A |
| Package/Case | 4532 |
| Length | 4.2mm |
| Depth | 3.2mm |
| Height | 3.2mm |
| Dimensions | 4.2 x 3.2 x 3.2mm |
| Maximum DC Resistance | 235mΩ |
| Series | WE-GFH |
| Core Material | Iron |
| Maximum Self Resonant Frequency | 53MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 30 |
| Inductor Construction | Moulded |
| Moulded | Yes |
| Minimum Operating Temperature | -40°C |
