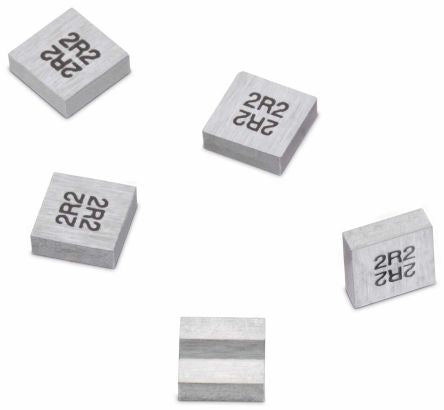

Wurth WE-MAPI Series Type 3020 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 2.2 μH ±20% [74438336022]; 163-7444
0₫
Mã kho: 1637444
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 2.4A |
| Package/Case | 3020 |
| Length | 3mm |
| Depth | 3mm |
| Height | 2mm |
| Dimensions | 3 x 3 x 2mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 80mΩ |
| Series | WE-MAPI |
| Core Material | Magnetic Iron Alloy |
| Maximum Self Resonant Frequency | 42MHz |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
