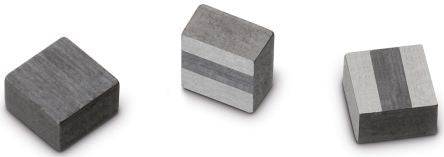

Wurth WE-MAPI Series Type 1610 Shielded Wire-wound SMD Inductor with a Magnetic Iron Alloy Core, 820 nH ±30% Wire-Wound [744383130082]; 863-0729
0₫
Mã kho: 8630729
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 820 nH |
| Maximum DC Current | 1.45A |
| Package/Case | 1610 |
| Length | 1.6mm |
| Depth | 1.6mm |
| Height | 1mm |
| Dimensions | 1.6 x 1.6 x 1mm |
| Shielded | Yes |
| Tolerance | ±30% |
| Maximum DC Resistance | 144mΩ |
| Series | WE-MAPI |
| Core Material | Magnetic Iron Alloy |
| Maximum Self Resonant Frequency | 115MHz |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
