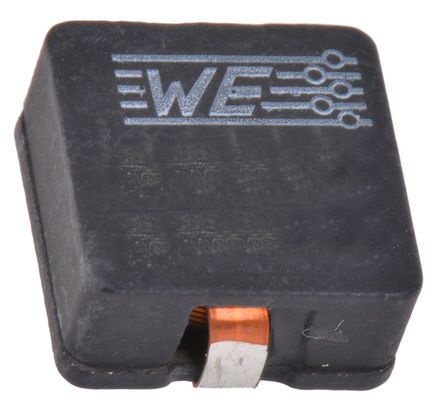

Wurth WE-HCI Series Type 1890 Shielded Wire-wound SMD Inductor MnZn 22 μH ±20% Flat Wire Winding 11A Idc [74435572200]; 736-2093
0₫
Mã kho: 7362093
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 22 μH |
Maximum DC Current | 11A |
Package/Case | 1890 |
Length | 18.3mm |
Depth | 18.2mm |
Height | 8.9mm |
Dimensions | 18.3 x 18.2 x 8.9mm |
Shielded | Yes |
Tolerance | ±20% |
Maximum DC Resistance | 14.6mΩ |
Series | WE-HCI |
Core Material | Manganese Zinc Ferrite |
Maximum Self Resonant Frequency | 10.5MHz |
Minimum Operating Temperature | -40°C |
Inductor Construction | Flat Wire Winding |
Maximum Operating Temperature | +125°C |
