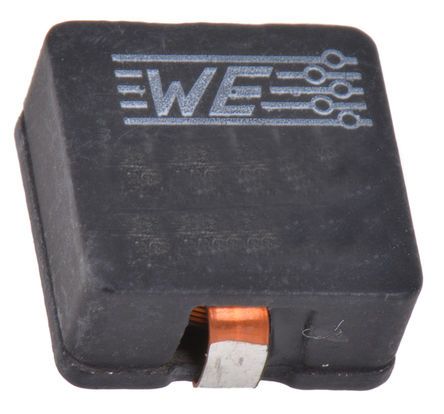

Wurth WE-HCI Series Type 7040 Shielded Wire-wound SMD Inductor with a WE-Superflux Core, 2.2 μH ±20% Flat Wire Winding [744311220]; 163-3672
0₫
Mã kho: 1633672
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 9A |
| Package/Case | 7040 |
| Length | 7mm |
| Depth | 6.9mm |
| Height | 3.8mm |
| Dimensions | 7 x 6.9 x 3.8mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 11.4mΩ |
| Series | WE-HCI |
| Core Material | WE-Superflux |
| Maximum Self Resonant Frequency | 52MHz |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Flat Wire Winding |
| Maximum Operating Temperature | +150°C |
