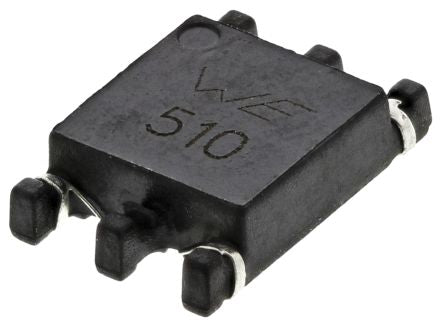

Wurth WE-SL3 Series Wire-wound SMD Inductor with a Ferrite Core, 51 μH -30 → +50% Dual 500mA Idc [744252510]; 163-3657
0₫
Mã kho: 1633657
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 51 μH |
| Maximum DC Current | 500mA |
| Length | 9.2mm |
| Depth | 6.6mm |
| Height | 2.5mm |
| Dimensions | 9.2 x 6.6 x 2.5mm |
| Tolerance | -30 → +50% |
| Maximum DC Resistance | 250mΩ |
| Series | WE-SL3 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Dual |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
