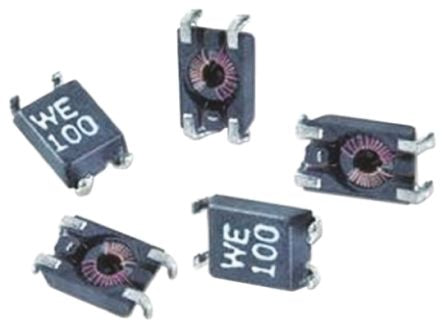

Wurth WE-SL1 Series Wire-wound SMD Inductor with a Ferrite Core, 330 μH ±50% Sectional Winding 300mA Idc [744212331]; 500-3199
0₫
Mã kho: 5003199
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 330 μH |
| Maximum DC Current | 300mA |
| Length | 6.5mm |
| Depth | 3.6mm |
| Height | 1.65mm |
| Dimensions | 6.5 x 3.6 x 1.65mm |
| Tolerance | ±50% |
| Maximum DC Resistance | 300mΩ |
| Series | WE-SL1 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 100kHz |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Sectional Winding |
| Maximum Operating Temperature | +105°C |
