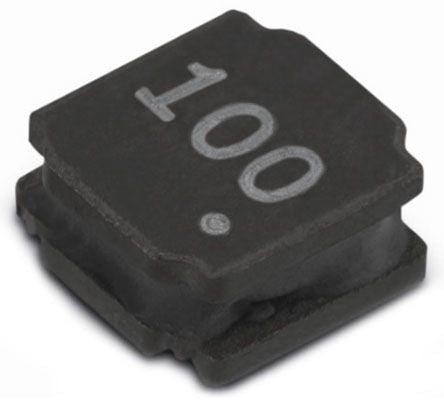

Wurth WE-LQSH Series Type 4020 Shielded Wire-wound SMD Inductor 1 μH ±20% Wire-Wound 4A Idc [74405042010]; 135-4783
0₫
Mã kho: 1354783
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1 μH |
| Maximum DC Current | 4A |
| Package/Case | 4020 |
| Length | 4mm |
| Depth | 3.7mm |
| Height | 2mm |
| Dimensions | 4 x 3.7 x 2mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 26mΩ |
| Series | WE-LQSH |
| Maximum Self Resonant Frequency | 55MHz |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
