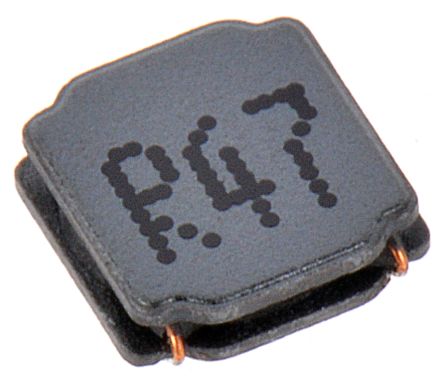

Wurth WE-LQS Series Type 4012 Shielded Wire-wound SMD Inductor 470 nH Moulded 3.25A Idc [744040410047]; 163-7797
0₫
Mã kho: 1637797
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 470 nH |
| Maximum DC Current | 3.25A |
| Package/Case | 4012 |
| Length | 4mm |
| Depth | 4mm |
| Height | 1.2mm |
| Dimensions | 4 x 4 x 1.2mm |
| Shielded | Yes |
| Maximum DC Resistance | 28mΩ |
| Series | WE-LQS |
| Maximum Self Resonant Frequency | 274MHz |
| Inductor Construction | Moulded |
| Moulded | Yes |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
