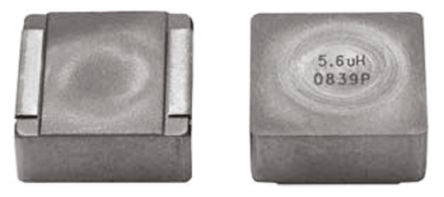

Vishay IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 5.6 μH ±20% [IHLP6767GZER5R6M01]; 748-7555
by Vishay
0₫
Mã kho: 7487555
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 5.6 μH |
| Maximum DC Current | 21A |
| Package/Case | 6767 |
| Length | 17.15mm |
| Depth | 17.15mm |
| Height | 7mm |
| Dimensions | 17.15 x 17.15 x 7mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 7.05mΩ |
| Series | IHLP-6767GZ-01 |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 2MHz |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -55°C |
