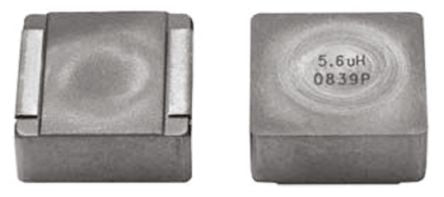

Vishay IHLP-6767GZ-01 Series Type 6767 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.2 μH ±20% [IHLP6767GZER2R2M01]; 748-7549
by Vishay
0₫
Mã kho: 7487549
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 35A |
| Package/Case | 6767 |
| Length | 17.15mm |
| Depth | 17.15mm |
| Height | 7mm |
| Dimensions | 17.15 x 17.15 x 7mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 2.53mΩ |
| Series | IHLP-6767GZ-01 |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 2MHz |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
