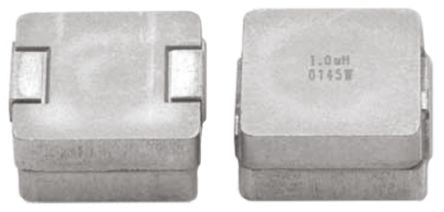

Vishay IHLP Series Type 5050 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 8.2 μH ±20% Wire-Wound [IHLP5050FDER8R2M01]; 173-0596
by Vishay
0₫
Mã kho: 1730596
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 8.2 μH |
| Maximum DC Current | 10.5A |
| Package/Case | 5050 |
| Length | 13.2mm |
| Depth | 12.9mm |
| Height | 6.5mm |
| Dimensions | 13.2 x 12.9 x 6.5mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 15.5mΩ |
| Series | IHLP |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 5MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Inductor Construction | Wire-Wound |
