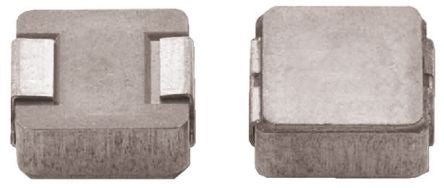

Vishay IHLP-2525CZ-01 Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 15 μH ±20% [IHLP2525CZER150M01]; 684-1056
by Vishay
0₫
Mã kho: 6841056
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 15 μH |
| Maximum DC Current | 3A |
| Package/Case | 2225 (5664M) |
| Length | 6.86mm |
| Depth | 6.47mm |
| Height | 3mm |
| Dimensions | 6.86 x 6.47 x 3mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 120mΩ |
| Series | IHLP-2525CZ-01 |
| Core Material | Metal Composite |
| Minimum Operating Temperature | -55°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
