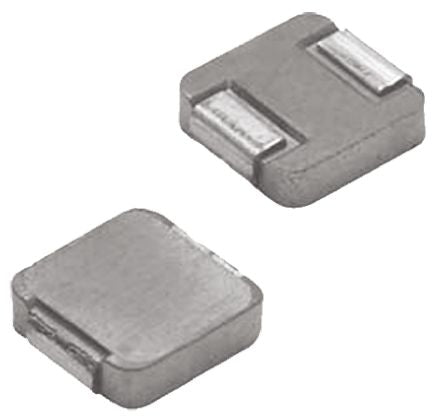

Vishay IHLP-1616AB-01 Series Type 1616 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 470 nH ±20% [IHLP1616ABERR47M01]; 748-6735
by Vishay
0₫
Mã kho: 7486735
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 470 nH |
| Maximum DC Current | 5A |
| Package/Case | 1616 |
| Length | 4.45mm |
| Depth | 4.06mm |
| Height | 1.2mm |
| Dimensions | 4.45 x 4.06 x 1.2mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 22mΩ |
| Series | IHLP-1616AB-01 |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 101MHz |
| Minimum Operating Temperature | -55°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
