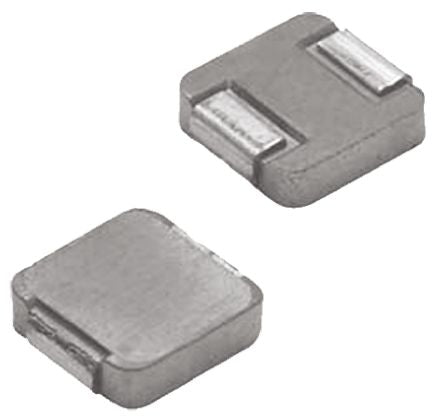

Vishay IHLP Series Type 1616 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 47 nH ±20% Wire-Wound [IHLP1616ABER47NM01]; 173-0491
by Vishay
0₫
Mã kho: 1730491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 47 nH |
| Maximum DC Current | 13A |
| Package/Case | 1616 |
| Length | 4.45mm |
| Depth | 4.06mm |
| Height | 1.2mm |
| Dimensions | 4.45 x 4.06 x 1.2mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 3.75mΩ |
| Series | IHLP |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 565MHz |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
