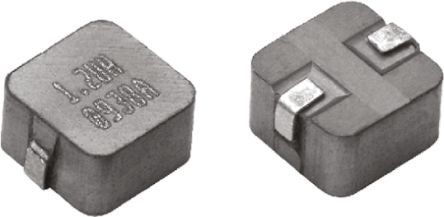

Vishay IHLP Series Type 1212 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 560 nH ±20% Wire-Wound [IHLP1212BZERR56M11]; 173-0525
by Vishay
0₫
Mã kho: 1730525
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 560 nH |
| Maximum DC Current | 5.5A |
| Package/Case | 1212 |
| Length | 3.6mm |
| Depth | 3mm |
| Height | 2mm |
| Dimensions | 3.6 x 3 x 2mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 19.4mΩ |
| Series | IHLP |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 110MHz |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
