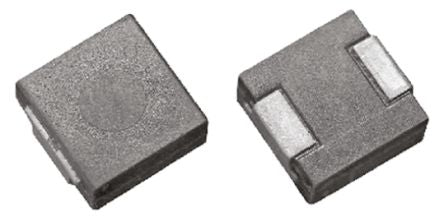

Vishay IHLM Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 470 nH ±20% Wire-Wound [IHLM2525CZERR47M01]; 173-3796
by Vishay
0₫
Mã kho: 1733796
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 470 nH |
| Maximum DC Current | 17.5A |
| Package/Case | 2225 (5664M) |
| Length | 6.86mm |
| Depth | 6.47mm |
| Height | 3mm |
| Dimensions | 6.86 x 6.47 x 3mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 4.2mΩ |
| Series | IHLM |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Wire-Wound |
| Moulded | Yes |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
