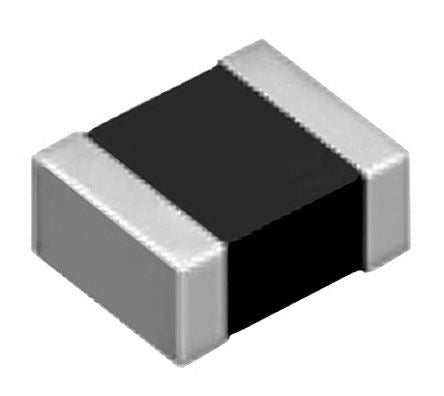

Toko DFE252012P Series Type 2012 Shielded Wire-wound SMD Inductor with a Powdered Iron Core, 470 nH Wire-Wound 6.4A Idc [DFE252012P-R47M=P2]; 162-0610
by Toko
0₫
Mã kho: 1620610
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 470 nH |
| Maximum DC Current | 6.4A |
| Package/Case | 2012 |
| Length | 2.5mm |
| Depth | 2mm |
| Height | 1.2mm |
| Dimensions | 2.5 x 2 x 1.2mm |
| Shielded | Yes |
| Maximum DC Resistance | 27mΩ |
| Series | DFE252012P |
| Core Material | Powdered Iron |
| Minimum Operating Temperature | -40°C |
| Moulded | Yes |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Wire-Wound |
