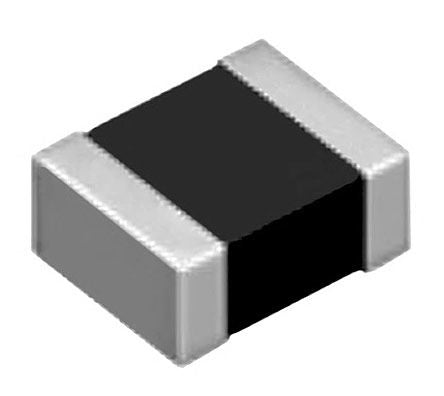

Toko DFE252012P Series Type 2012 Shielded Wire-wound SMD Inductor with a Powdered Iron Core, 2.2 μH Wire-Wound 3.4A Idc [DFE252012P-2R2M=P2]; 167-0606
by Toko
0₫
Mã kho: 1670606
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 3.4A |
| Package/Case | 2012 |
| Length | 2.5mm |
| Depth | 2mm |
| Height | 1.2mm |
| Dimensions | 2.5 x 2 x 1.2mm |
| Shielded | Yes |
| Maximum DC Resistance | 84mΩ |
| Series | DFE252012P |
| Core Material | Powdered Iron |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Moulded | Yes |
