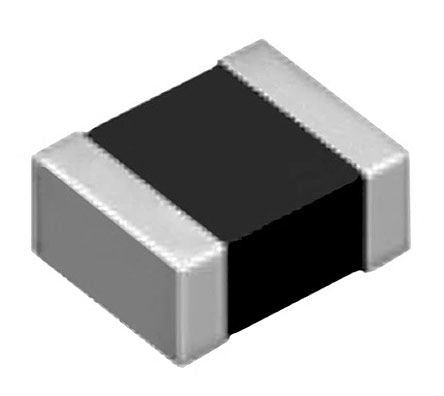

Toko DFE201610P Series Type 2016 Shielded Wire-wound SMD Inductor with a Powdered Iron Core, 2.2 μH Wire-Wound 2.2A Idc [DFE201610P-2R2M=P2]; 167-0598
by Toko
0₫
Mã kho: 1670598
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 2.2A |
| Package/Case | 2016 |
| Length | 2mm |
| Depth | 1.6mm |
| Height | 1mm |
| Dimensions | 2 x 1.6 x 1mm |
| Shielded | Yes |
| Maximum DC Resistance | 168mΩ |
| Series | DFE201610P |
| Core Material | Powdered Iron |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Moulded | Yes |
