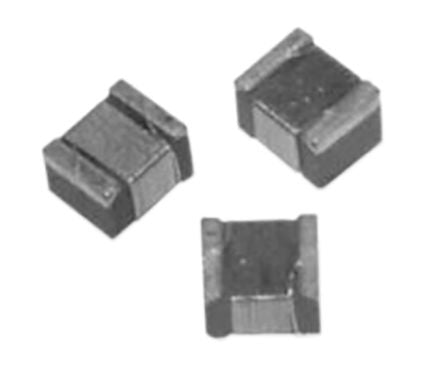

TE Connectivity 3650 Series Type 0805 Wire-wound SMD Inductor 200 nH ±5% Wire-Wound 400mA Idc Q:50 [36502AR20JTDG]; 168-0268
0₫
Mã kho: 1680268
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 200 nH |
| Maximum DC Current | 400mA |
| Package/Case | 0805 (2012M) |
| Length | 2.29mm |
| Depth | 1.73mm |
| Height | 1.52mm |
| Dimensions | 2.29 x 1.73 x 1.52mm |
| Tolerance | ±5% |
| Maximum DC Resistance | 660mΩ |
| Series | 3650 |
| Maximum Self Resonant Frequency | 860MHz |
| Minimum Quality Factor | 50 |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
