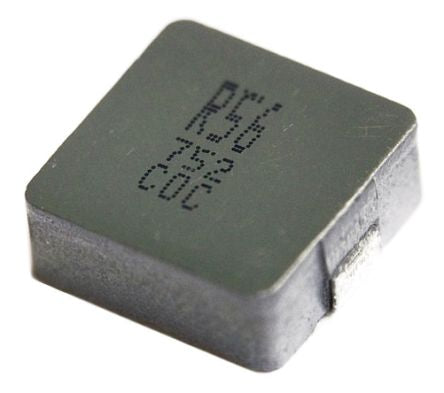

RS PRO Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±20% Moulded 10A Idc; 162-1404
by RS PRO
0₫
Mã kho: 1621404
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 10 μH |
Maximum DC Current | 10A |
Length | 13.4mm |
Depth | 12.5mm |
Height | 6.8mm |
Dimensions | 13.4 x 12.5 x 6.8mm |
Shielded | Yes |
Tolerance | ±20% |
Maximum DC Resistance | 16.8mΩ |
Core Material | Ferrite |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Moulded | Yes |
Inductor Construction | Moulded |
