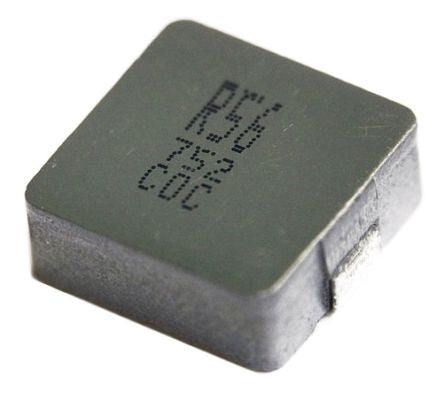

RS PRO Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±20% Moulded 10A Idc; 123-4655
by RS PRO
0₫
Mã kho: 1234655
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 10A |
| Length | 13.4mm |
| Depth | 12.5mm |
| Height | 6.8mm |
| Dimensions | 13.4 x 12.5 x 6.8mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 16.8mΩ |
| Core Material | Ferrite |
| Minimum Operating Temperature | -55°C |
| Inductor Construction | Moulded |
| Moulded | Yes |
| Maximum Operating Temperature | +125°C |
