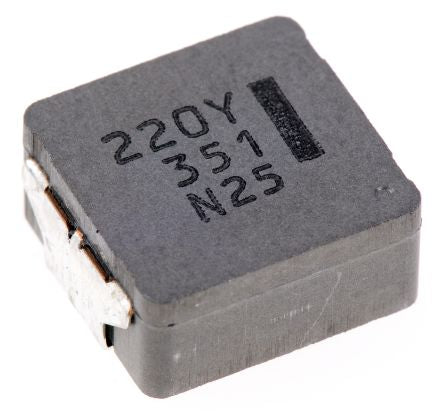

Panasonic ETQP5M Series Type PCC-M Wire-wound SMD Inductor with a Metal Composite Core, 22 μH ±20% Wire-Wound 6.2A Idc [ETQP5M220YFC]; 770-9391
by Panasonic
0₫
Mã kho: 7709391
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 22 μH |
| Maximum DC Current | 6.2A |
| Package/Case | PCC-M |
| Length | 10.7mm |
| Depth | 10mm |
| Height | 5.4mm |
| Dimensions | 10.7 x 10 x 5.4mm |
| Tolerance | ±20% |
| Maximum DC Resistance | 50mΩ |
| Series | ETQP5M |
| Core Material | Metal Composite |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -40°C |
| Moulded | Yes |
| Maximum Operating Temperature | +150°C |
